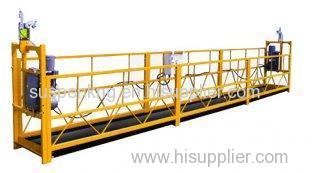

ZLP1000 1000 kg Safe Suspended Working Platform Scaffold Systems

Place of Origin: Guangdong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: AIA-1



ZLP1000 1000 kg Safe Suspended Working Platform Scaffold Systems

      SHENX



ZLP1000 1000 kg Safe Suspended Working Platform Scaffold Systems



      SHENXI is the biggest suspended platform manufacturer since 1988 in China. We start to design Building Maintenance Unit (BMU) and produce multiple products in 1989, such as BMU, aerial work platform, mast climber, construction hoist etc. Most of our products are used for façade cleaning, curtain wall installing, wind plant, bridge, shipping, and chimney of power plant, transport material and workers in building site.

     SHENXI focus on safety and quality, no fatal accident since 1988. We are the only one suspended platform manufacturer who passed KONE ELEVATOR system and get CE certificate in 2008. We have many teams for supporting our quality, such as very strong technical department and quality control system. SHENXI always update products for competition.

     You can find SHENXI products in 70 countries all over of the world. We have more than 30 good dealers and 5 exclusive agents. All of these partners can service you in time.

     Many famous projects use SHENXI products, for example: Guangzhou TV tower (610m), Khalifa Tower (828m), CCTV Building………



Description:



Item

Parameters

Rated capacity

1000 kg

Rated speed

8.3 m/min

Platform length

2.5m*3

Steel rope

6*19W+IWS-8.6

Hoist

Hoist model

LTD10

Rated lifting force

8 kN

Motor

Model

YEJ100L1-4

Power

3 kW

Phase

3 Phase

Speed

1420 r/m

Brake force moment

30 Nm

Safety lock

Configuration

Anti-tilting

Permission force of impact

30 kN

Locking Cable Distance

100mm

Locking Cable Angle

3°8°

Suspension mechanism

Front beam overhang

1.3-1.7 m

Height adjustment

1.365 -1.925 m

Weight

Lifting part (including hoist, safety lock and electric control system)

Steel Platform

600 kg

Aluminum platform

430 kg

Suspension mechanism

310kg

Counter weight

1300 kg



Competitive Advantage:



-Made of high strength aluminum alloy

-Powered by new motor system

-A suspended access platform with sufficient capacity to carry huge load.

-Access to any manner of buildings or constructions

-Size of platform can be adjusted on request

-Used mainly for maintenance and construction work concerning unapproachable buildings or objects such as huge tanks, ships, dams, etc.
